• Air conditioning, single-zone manual front climate control
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab Models.)
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Door locks, power includes Remote Keyless Entry
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Seat adjuster, manual lumbar control on the driver-side
• Seat trim, Premium Cloth

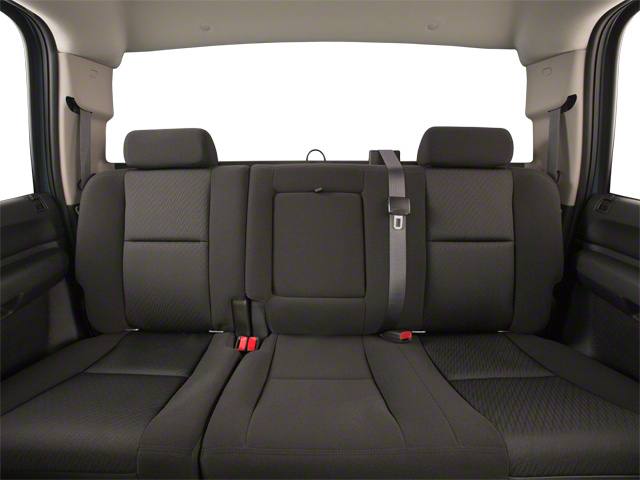

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Extended or Crew Cab Models.)
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Extended and Crew Cab models
• SiriusXM Satellite Radio (subscription required)

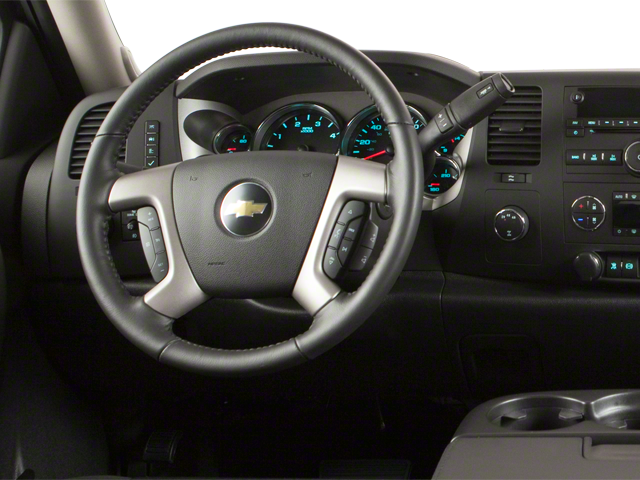

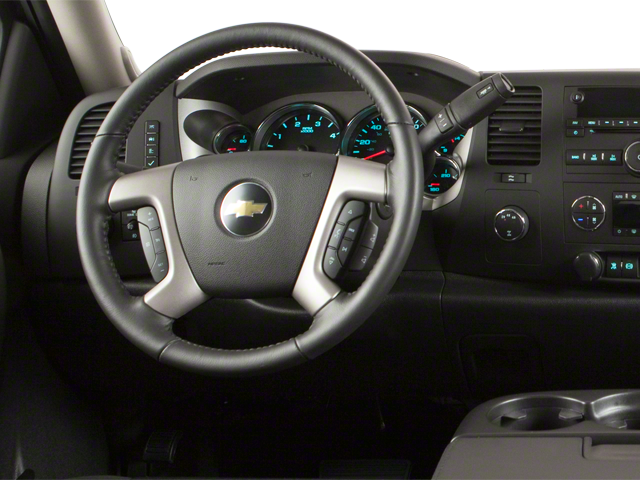

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

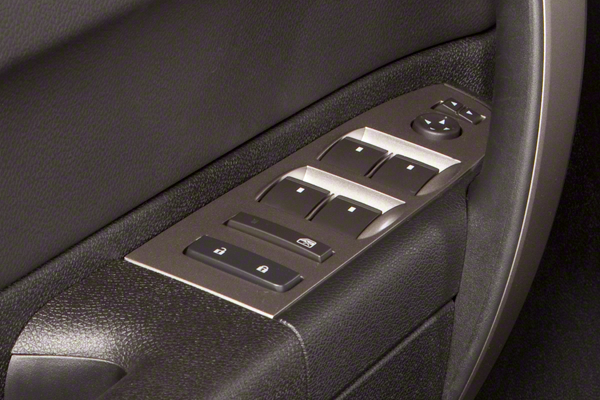

• Windows, power with driver Express-Down

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Four wheel drive
• Frame, fully-boxed, hydroformed front section

• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Tire Pressure Monitor System (does not apply to spare tire)

SUSPENSION PACKAGE, OFF-ROAD

• includes 35mm deflective disk twin tube shock absorbers
• off-road jounce bumpers
• 33mm front stabilizer bar
• (NZZ) skid plate package and Z71 decals on rear quarters

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION, BLACK

• includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode (STD)

REAR PARKING ASSIST, ULTRASONIC

• with audible warning

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness routed to front of pickup box

CONVENIENCE PACKAGE

• includes (JF4) Adjustable power pedals
• (UD7) Rear Parking Assist
• (UG1) Universal Home Remote
• (AP3) Remote vehicle starter system and (C49) rear-window electric defogger

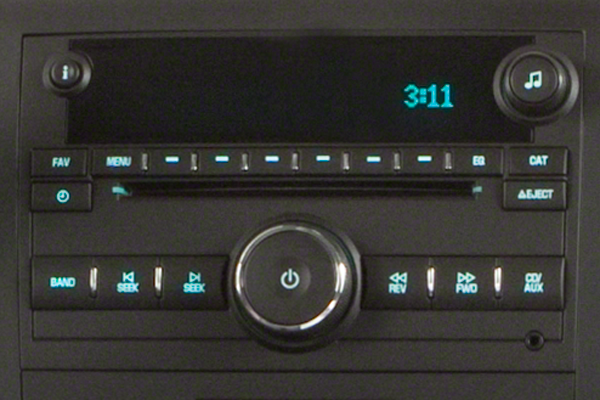

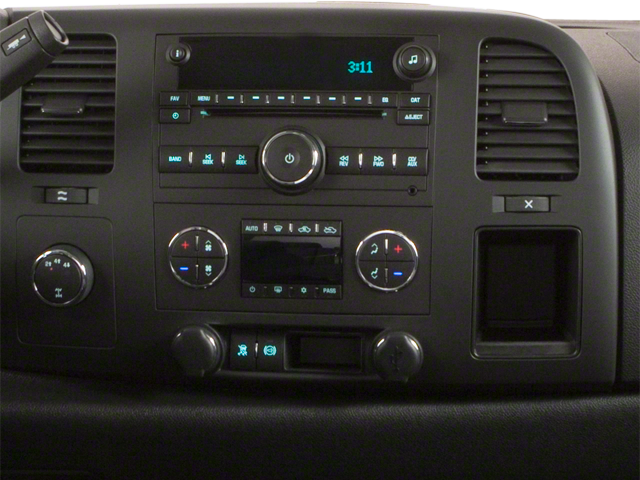

AUDIO SYSTEM, AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• speed-compensated volume and TheftLock (STD)

REMOTE VEHICLE STARTER SYSTEM

• includes Remote Keyless Entry with 2 transmitters
• panic button and content theft alarm

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

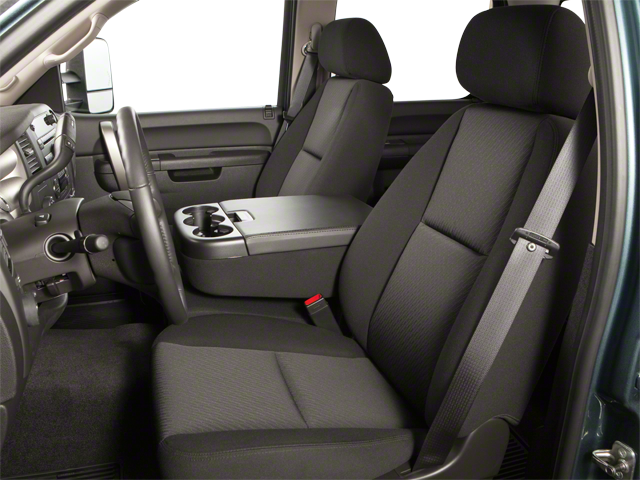

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINING

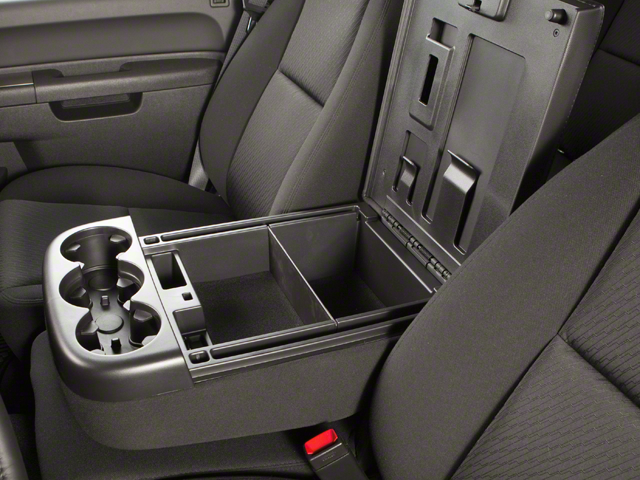

• center fold-down armrest with storage
• lockable storage compartment in seat cushion (includes auxiliary power outlet)
• adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)

SKID PLATE PACKAGE, FRAME-MOUNTED SHIELDS

• includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

Z71 APPEARANCE PACKAGE

• includes (PYV) 18" (45.7 cm) forged polished aluminum wheels
• (QGM) LT265/70R18E all-terrain
• blackwall tires
• (T96) front fog lamps
• body-colored outside mirrors and door handles
• body-colored bumper
• chrome grille with body-colored surround
• unique "Z71" decals and sill plates

• LICENSE PLATE FRONT MOUNTING PACKAGE
• SUSPENSION PACKAGE OFF-ROAD includes 35mm deflective disk twin tube shock absorbers off-road jounce bumpers 33mm front stabilizer bar (NZZ) skid plate package and Z71 decals on rear quarters
• UNIVERSAL HOME REMOTE
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION BLACK includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated or power adjustable)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode (STD)
• SEAT ADJUSTER DRIVER 6-WAY POWER
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• WHEELS 18" (45.7 CM) FORGED POLISHED ALUMINUM
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• REAR PARKING ASSIST ULTRASONIC with audible warning
• GVWR 9500 LBS. (4309 KG)
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness routed to front of pickup box
• CONVENIENCE PACKAGE includes (JF4) Adjustable power pedals (UD7) Rear Parking Assist (UG1) Universal Home Remote (AP3) Remote vehicle starter system and (C49) rear-window electric defogger
• PEDALS POWER-ADJUSTABLE FOR ACCELERATOR AND BRAKE
• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock (STD)
• REMOTE VEHICLE STARTER SYSTEM includes Remote Keyless Entry with 2 transmitters panic button and content theft alarm
• PAINT SOLID
• BLACK
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• FOG LAMPS FRONT HALOGEN
• EBONY PREMIUM CLOTH SEAT TRIM
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING center fold-down armrest with storage lockable storage compartment in seat cushion (includes auxiliary power outlet) adjustable outboard head restraints and storage pockets on Extended and Crew Cab models (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• LAMPS SMOKED AMBER ROOF MARKER
• SKID PLATE PACKAGE FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• Z71 APPEARANCE PACKAGE includes (PYV) 18" (45.7 cm) forged polished aluminum wheels (QGM) LT265/70R18E all-terrain blackwall tires (T96) front fog lamps body-colored outside mirrors and door handles body-colored bumper chrome grille with body-colored surround unique "Z71" decals and sill plates
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Split Bench Seat
• Power Outlet
• Cloth Seats
• Driver Adjustable Lumbar
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Power Windows
• Keyless Entry
• Power Door Locks
• Cruise Control
• Security System
• Keyless Entry
• Power Door Locks
• A/C
• Power Outlet
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Child Safety Locks
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3657
• Curb Weight - Rear (lbs): 2719
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1410
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2350
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.42
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QGM
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QGM
• Rear Tire Order Code: QHQ
• Front Tire Size: LT265/70R18E
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT265/70R18E
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): 2860
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3185
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x - TBD -
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 18 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.7
• Length, Overall w/o rear bumper (in): 240.2
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 78.1
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 150.9
• Cab to Axle (in): 41.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.8
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.3
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 40.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 65.5
• Summary

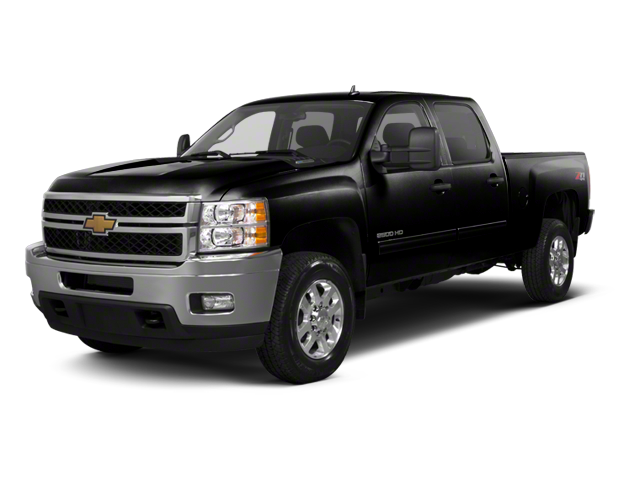

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab 6.5' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
