• Tilt steering column

• Full-size spare tire
• Pwr steering
• Rear wheel drive

• 4-wheel anti-lock braking system

5.4L (330) SOHC EFI V8 "TRITON" ENGINE

• (STD)

• Rear Wheel Drive
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Steel Wheels
• Wheel Covers
• Power Steering
• ABS
• 4-Wheel Disc Brakes

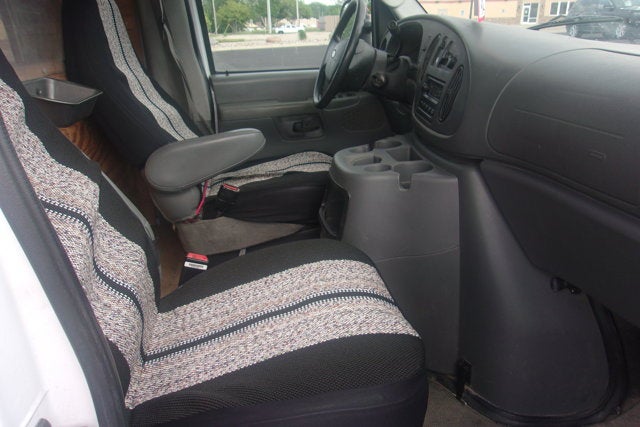

• Vinyl Seats
• Bucket Seats
• Adjustable Steering Wheel
• A/C
• AM/FM Stereo
• Power Outlet
• ABS
• Driver Air Bag
• Passenger Air Bag

• Vehicle
• Rear Door Type: Dual
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 650
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Watts: 1950
• Cooling System
• Total Cooling System Capacity (qts): 27.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3400
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2944
• Curb Weight - Rear (lbs): 2638
• Gross Vehicle Weight Rating Cap (lbs): 9400
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 930
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf 2-Stage
• Spring Capacity - Front (lbs): 3400
• Spring Capacity - Rear (lbs): 6195
• Axle Type - Front: Twin I-Beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4600
• Axle Capacity - Rear (lbs): 7800
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): 1.00
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.03 x0.48
• Rear Brake Rotor Diam x Thickness (in): 12.9 x 0.54

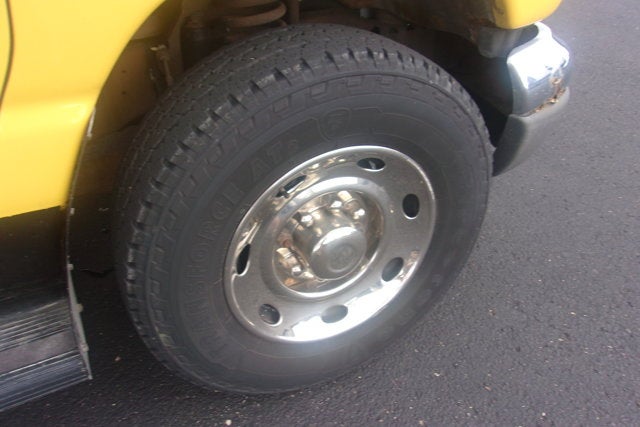

• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38
• Spare Tire Order Code: 51A
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 3042
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Revolutions/Mile @ 45 mph - Spare: 677
• Wheels
• Front Wheel Size (in): 16 x 7
• Rear Wheel Size (in): 16 x 7
• Spare Wheel Size (in): 16 x 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 17.0
• Turning Diameter - Curb to Curb (ft): 48.0
• Turning Diameter - Wall to Wall (ft): 50.2
• Frame
• Frame Type: Single Channel
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 35.0
• Fuel Tank Location: Midship
• Doors
• Side Door Type: RH Dual Hinged
• Exterior Dimensions
• Wheelbase (in): 138.0
• Length, Overall w/rear bumper (in): 231.9
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 84.1
• Overhang, Front (in): 30.1
• Overhang, Rear w/bumper (in): 63.8
• Ground to Top of Load Floor (in): 32.0
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 8.1
• Rear Door Opening Height (in): 48.3
• Rear Door Opening Width (in): 54.4
• Side Door Opening Height (in): 48.3
• Side Door Opening Width (in): 47.1
• Step Up Height - Front (in): - TBD -
• Step Up Height - Side (in): 18.0

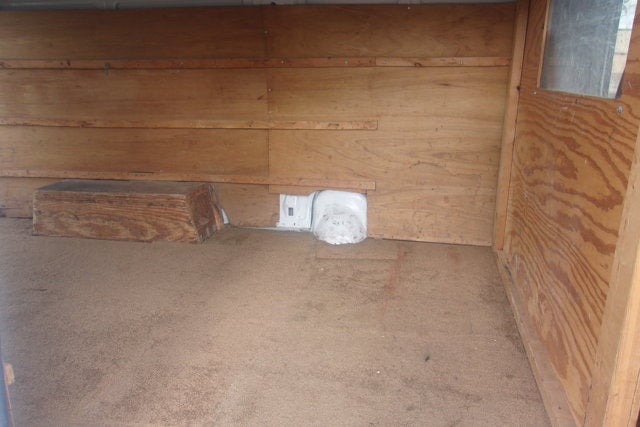

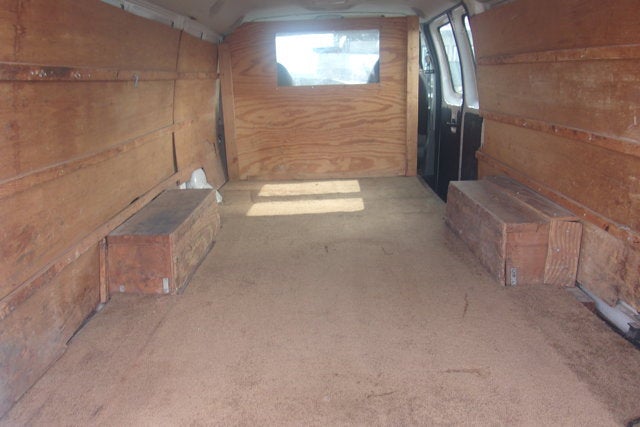

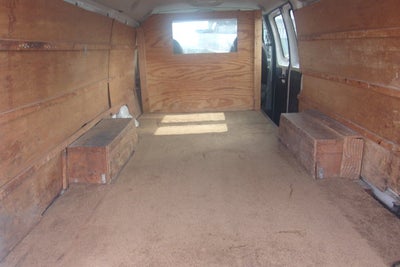

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 140.4
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 72.4
• Cargo Box Width @ Wheelhousings (in): 52.8
• Cargo Box (Area) Height (in): 52.5
• Cargo Volume (ft³): 309.4
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42.5
• Front Leg Room (in): 40.0
• Front Shoulder Room (in): 68.4
• Front Hip Room (in): 65.6
• Summary

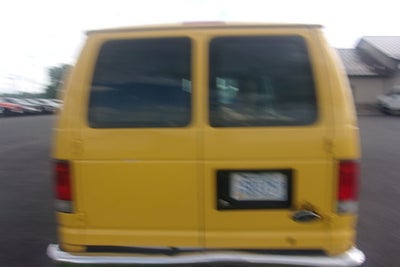

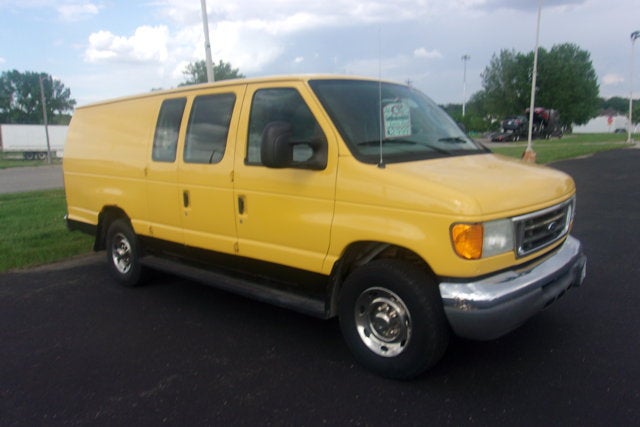

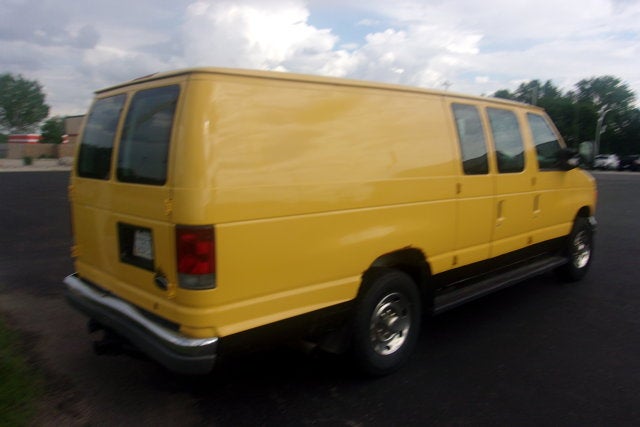

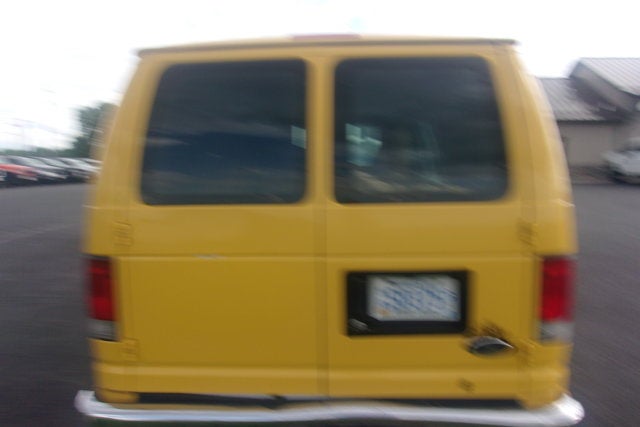

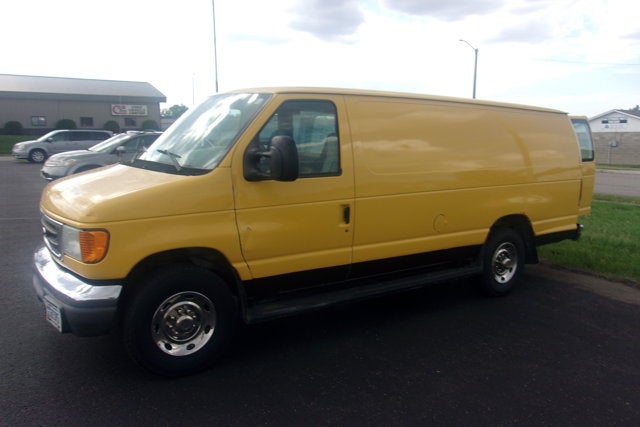

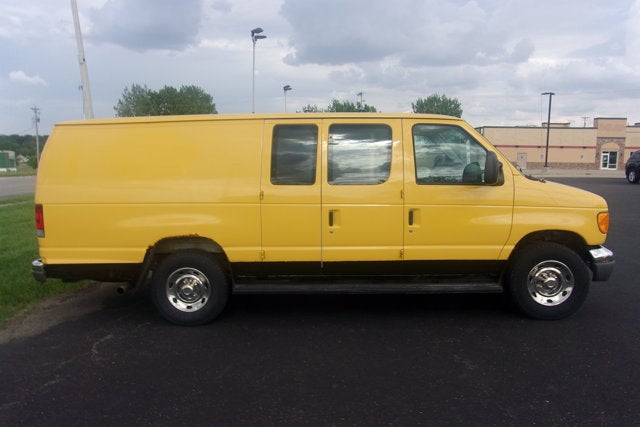

• Vehicle Name: Ford Econoline Cargo Van
• Body Style: E-350 Super
• Body Code: 138
